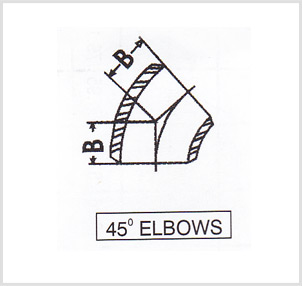

45° Elbow

Nominal Pipe sizeipe Size	45° Long Radius Elbowiam.
	Centre to Face	Centre Line Radius
	B
15	16	38
20	11	29
25	22	38
32	25	48
40	29	57
50	35	76
65	44	95
80	51	114
90	57	113
100	64	152
125	79	190
150	95	229
200	127	305
250	159	381
300	190	457
350	222	533
400	254	610
450	286	486
500	318	762
550	343	762
600	381	914

Note :

1.*Dimensions A and B nominal pipe size 20 may be 38 and 19 respectively at the option of manufacturer.

2. Thickness and outside diameter of above fittings shall correspond to those of appropriate nominal pipe size.

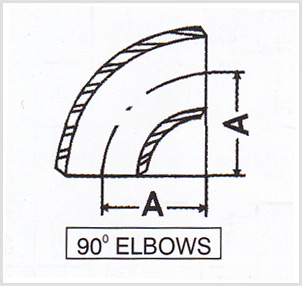

90° Elbow - Long Radius

Nominal Pipe size	90° Long Radius Elbow
	Centre to Face
	A
15	38
20	29
25	38
32	48
40	57
50	76
65	95
80	114
90	133
100	152
125	190
150	229
200	305
250	381
300	457
350	533
400	610
450	686
500	762
550	838
600	914

Note :

1.*Dimensions A and B nominal pipe size 20 may be 38 and 19 respectively at the option of manufacturer.

2. Thickness and outside diameter of above fittings shall correspond to those of appropriate nominal pipe size.

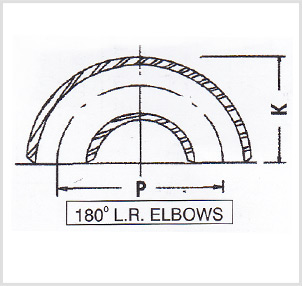

180° Bend - Long Radius

Nominal Pipe Size	180° Long Radius Return
	Centre to Centre	Back to Face
	P	K
15	76	48
20	57	43
25	76	56
32	95	70
40	114	83
50	152	106
65	191	132
80	229	159
90	267	184
100	305	210
125	381	262
150	457	313
200	610	414
250	762	518
300	914	619
350	1067	711
400	1219	813
450	1372	914
500	1524	1016
550	1676	1118
600	1829	1219

Note:

Thickness and outside diameter of above fittings shall correspond to those of appropriate nominal pipe size.

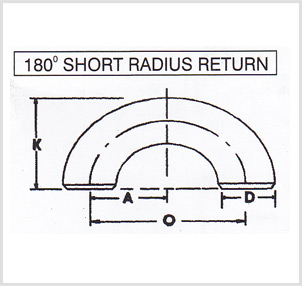

180° Bend - Short Radius

Nominal Pipe size	Outside Diameter at Bevel	Centre to End	Centre to Centre	Back to Face
	D	A	O	K
25	33	25	51	41
32	42	32	64	52
40	48	38	76	62
50	60	51	102	81
65	73	64	127	100
80	89	76	152	121
90	102	89	178	140
100	114	102	203	159
125	141	127	254	197
150	168	152	305	236
200	219	203	406	313
250	273	254	508	391
300	324	305	610	467
350	356	356	711	533
400	406	406	813	610
450	457	457	914	686
500	508	508	1016	762
550	559	559	1118	838
600	610	610	1219	914

Note : All dimensions are in mm.

Thickness and outside diameter of above fittings shall correspond to those of appropriate nominal pipe size.

Tee

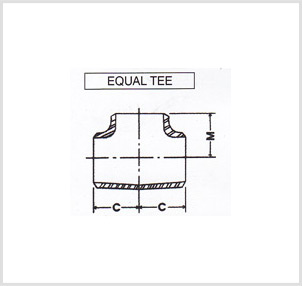

EQUAL TEE
Nominal Pipe Size	Centre to End	Centre to End
	C	M
15	25	25
20	29	29
25	38	38
32	48	48
40	57	57
50	64	64
65	76	76
80	86	86
90	95	95
100	105	105
125	124	124
150	143	143
200	178	178
250	216	216
300	254	254
350	279	279
400	305	305
450	343	343
500	381	381
550	419	419
600	432	432

Note: *Not covered by Specification

Thickness and outside diameter of above fittings shall correspond to those of appropriate nominal pipe size.

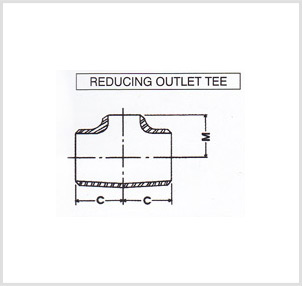

REDUCING OUTLET TEE

REDUCING OUTLET TEE
Nominal Pipe Size	Centre to End	Centre to End	Nominal Pipe Size	Centre to End	Centre to End	Nominal Pipe Size	Centre to End	Centre to End
	C	M		C	M		C	M
15x15x8 15x15x10	25 25	25 25	100x100x40 100x100x50 100x100x65 100x100x80 100x100x90	105 105 105 105 105	86 89 95 98 102	350x350x150 350x350x200 350x350x250 350x350x300	279 279 279 279	238 248 257 270
20x20x10 20x20x15	29 29	29 29
25x25x10* 25x25x15 25x25x20	38 38 38	38 38 38				400x400x150 400x400x200 400x400x250 400x400x300 400x400x350	305 305 305 305 305	264 264 283 295 305
			125x125x50 125x125x65 125x125x80 125x125x90 125x125x100	124 124 124 124 124	105 108 111 114 117
32x32x15 32x32x20 32x32x25	48 48 48	48 48 48
						450x450x200 450x450x250 450x450x300 450x450x350 450x450x400	343 343 343 343 343	298 308 321 330 330
40x40x15 40x40x20 40x40x25 40x40x32	57 57 57 57	57 57 57 57	150x150x50* 150x150x65 150x150x80 150x150x90 150x150x100 150x150x125	143 143 143 143 143 143	121 121 124 127 130 137
50x50x20 50x50x25 50x50x32 50x50x40	64 64 64 64	44 51 57 60				500x500x200 500x500x250 500x500x300 500x500x350 500x500x400 500x500x450	381 381 381 381 381 381	324 333 346 356 356 368
			200x200x80* 200x200x90 200x200x100 200x200x125 200x200x150	178 178 178 178 178	152 152 156 162 168
65x65x25 65x65x32 65x65x40 65x65x50	76 76 76 76	57 64 67 70
						600x600x250 600x600x300 600x600x350 600x600x400 600x600x450 600x600x500	432 432 432 432 432 432	384 397 406 406 419 432
			250x250x80* 250x250x90* 250x250x100 250x250x125 250x250x150 250x250x200	216 216 216 216 216 216	184 184 184 191 194 203
80x80x25* 80x80x32 80x80x40 80x80x50 80x80x65	86 86 86 86 86	67 70 73 76 83

90x90x40 90x90x50 90x90x65 90x90x80	95 95 95 95	79 83 89 92	300x300x100* 300x300x125 300x300x150 300x300x200 300x300x250	254 254 254 254 254	216 216 219 229 241

Note: *Not covered by Specification

Thickness and outside diameter of above fittings shall correspond to those of appropriate nominal pipe size.

Reducers - Concentric Reducers

Nominal Pipe Size	Length	Nominal Pipe Size	Length
	H		H
20x10 20x15	38 38	90x32 90x40 90x50 90x65 90x80	102 102 102 102 102
25x10* 25x15 25x20	51 51 51	100x25* 100x32* 100x40 100x50 100x65 100x80 100x90	102 102 102 102 102 102 102
32x15 32x20 32x25	51 51 51	125x50 125x65 125x80 125x90 125x100	127 127 127 127 127
40x15 40x20 40x25 40x32	64 64 64 64	150x50* 150x65 150x80 150x90 150x100 150x125	140 140 140 140 140 140
50x20 50x25 50x32 50x40	76 76 76 76	200x80* 200x90	152 152
65x25 65x32 65x40 65x50	89 89 89 89
80x25* 80x32 80x40 80x50 80x65	89 89 89 89 89

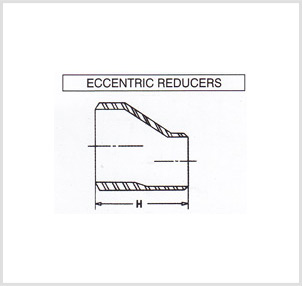

Reducers - Eccentric Reducers

Nominal Pipe Size	Length	Nominal Pipe Size	Length
	H		H
200x100 200x125 200x150	152 152 152	500x300 500x350 500x400 500x450	508 508 508 508
250x80* 250x100 250x125 250x150 250x200	178 178 178 178 178	550x350 550x400 550x450 550x500	508 508 508 508
300x100* 300x125 300x150 300x200 300x250	203 203 203 203 203	600x400 600x450 600x500	508 508 508
350x150 350x200 350x250 350x300	330 330 330 330
400x200 400x250 400x300 400x350	356 356 356 356
450x250 450x300 450x350 450x400	381 381 381 381

Note : All Dimension are in mm.

*Not covered by the specification.

Thickness and outside diameter of reducers shall correspond to those of appropriate nominal pipe size.

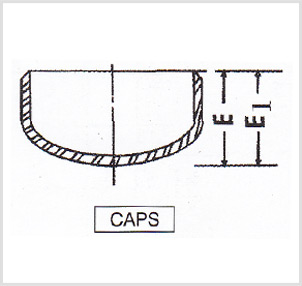

Caps

Nominal Pipe Size	Cap	Cap
	Length	Length
	E	E1
15	25	25
20	25	25
25	38	38
32	38	38
40	38	38
50	38	44
65	38	51
80	51	64
90	64	76
100	64	76
125	76	89
150	89	102
200	102	127
250	127	152
300	152	178
350	165	191
400	178	203
450	203	229
500	229	254
550	254	254
600	267	305

Note :

E- Length of Caps applicable to wall thickness of Schedule 40 and Schedule Extra Strong.

E1- Length of Caps applicable to all other schedule / wall thickness higher than schedule 40 and Schedule Extra Strong.

Thickness and outside diameter of above fittings shall correspond to those of appropriate nominal pipe size.
